Manufacturer: ASROCK

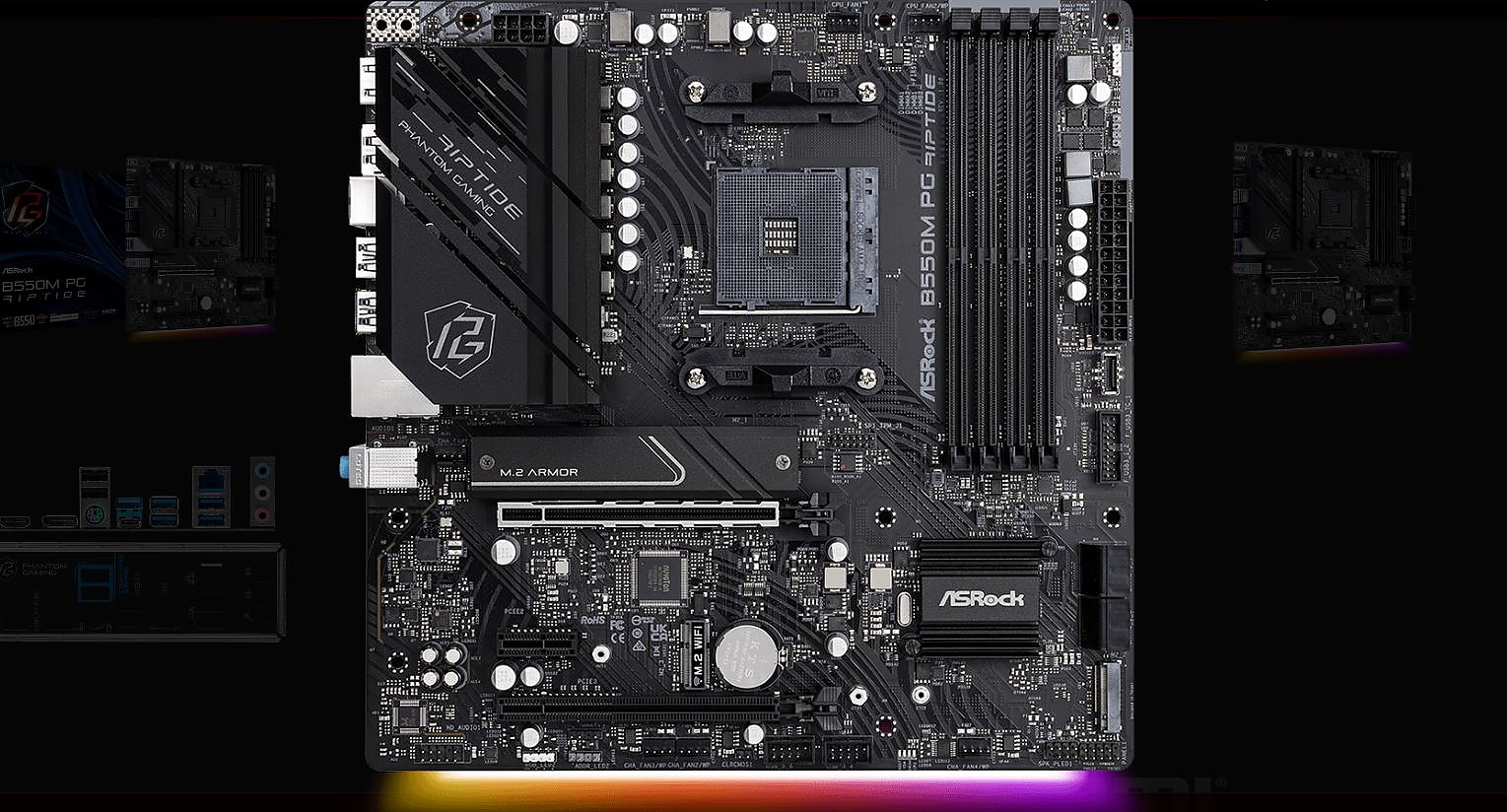

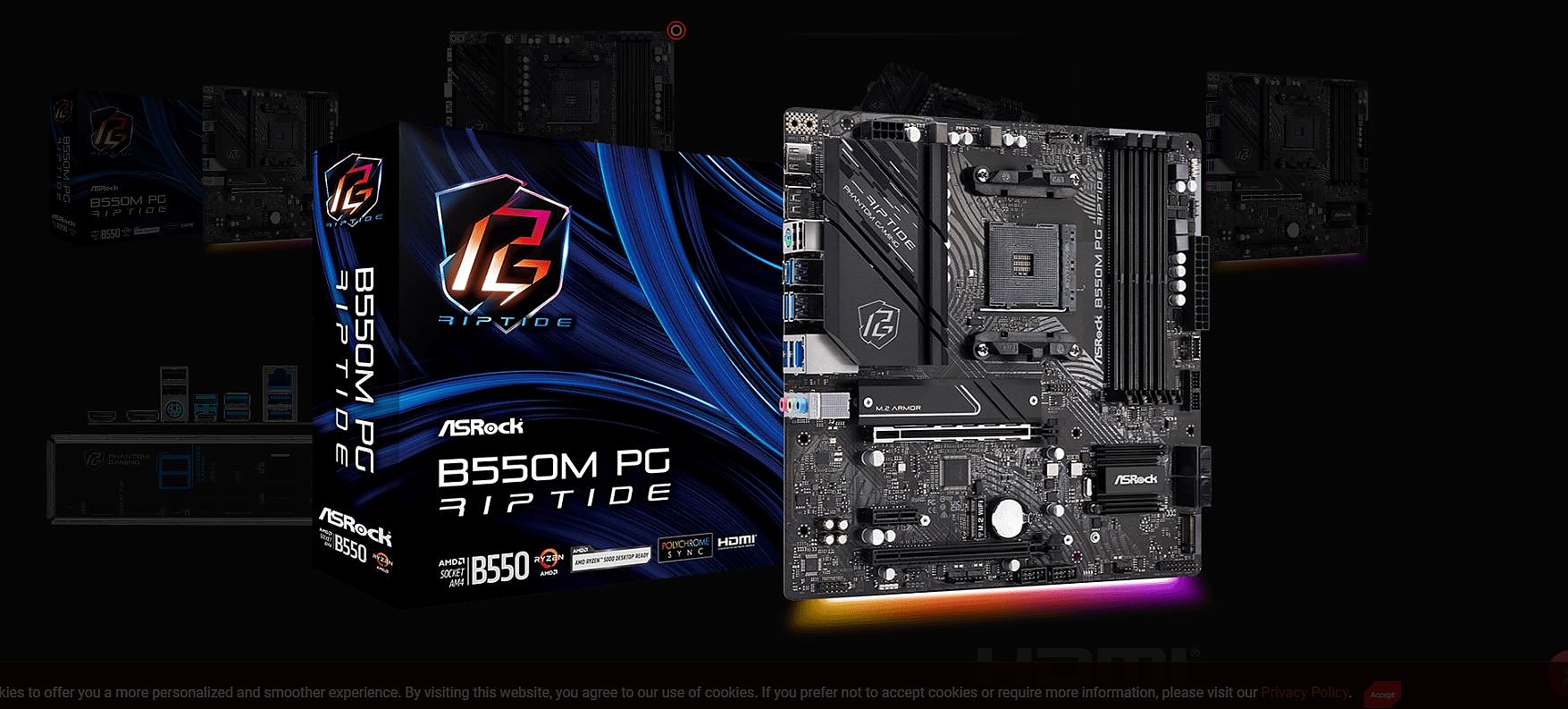

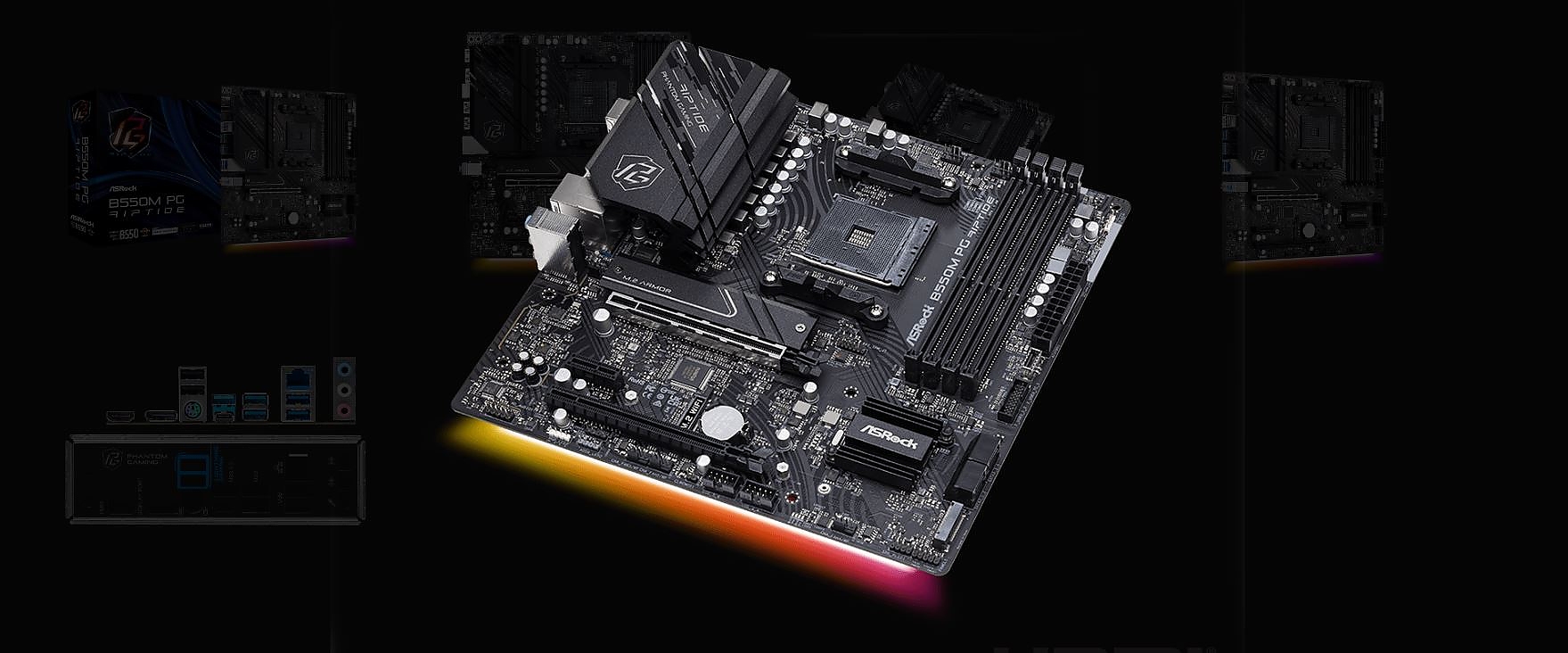

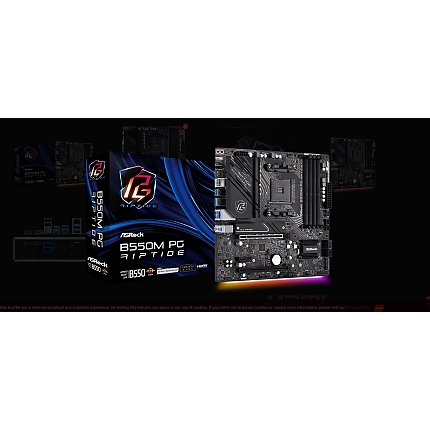

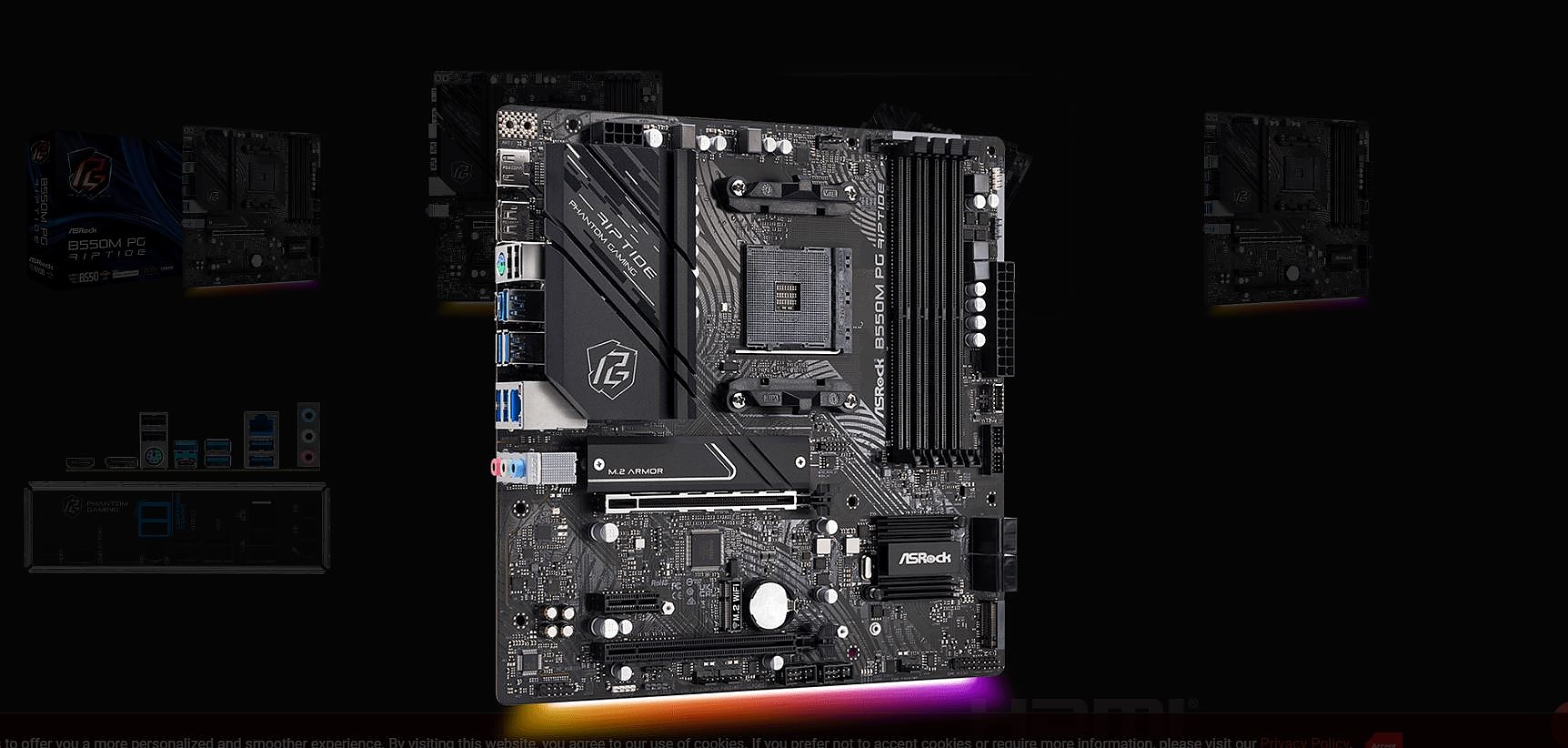

Model: B550M PG RIPTIDE
CPU's supported: Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series; Desktop Processors; Digi Power design; 8 Power Phase design;
Memory type: Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory; AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory; AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory; AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(
Chipset: AMD B550
Graphics: Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; DirectX 12, Pixel Shader 5.0; Shared memory default 2GB. Max Shared memory supports up to 16GB.**; Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz; Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); Supports HDR (High Dynamic Range) with HDMI 2.1; Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***; Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; Supports Microsoft PlayReady;Actual support may vary by CPU; The Max shared memory 16GB requires 32GB system memory installed.; Picasso supports HDCP 2.2 with HDMI 2.0 Port;
Expansion Slots: AMD Ryzen series CPUs (Vermeer and Matisse); 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3x4 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3x4 mode)*; AMD Ryzen series APUs (Picasso); 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3x4 mode)*; 1 x PCIe Gen3x1 Slot; Supports AMD Quad CrossFireX™ and CrossFireX™; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; 15μ Gold Contact in VGA PCIe Slot (PCIE1);
Storage: 4 x SATA3 6.0 Gb/s Connectors; 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)*; 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*; Supports NVMe SSD as boot disks; NVMe SSD is not supported with AMD Athlon™ 3000G Processors; Supports ASRock U.2 Kit;

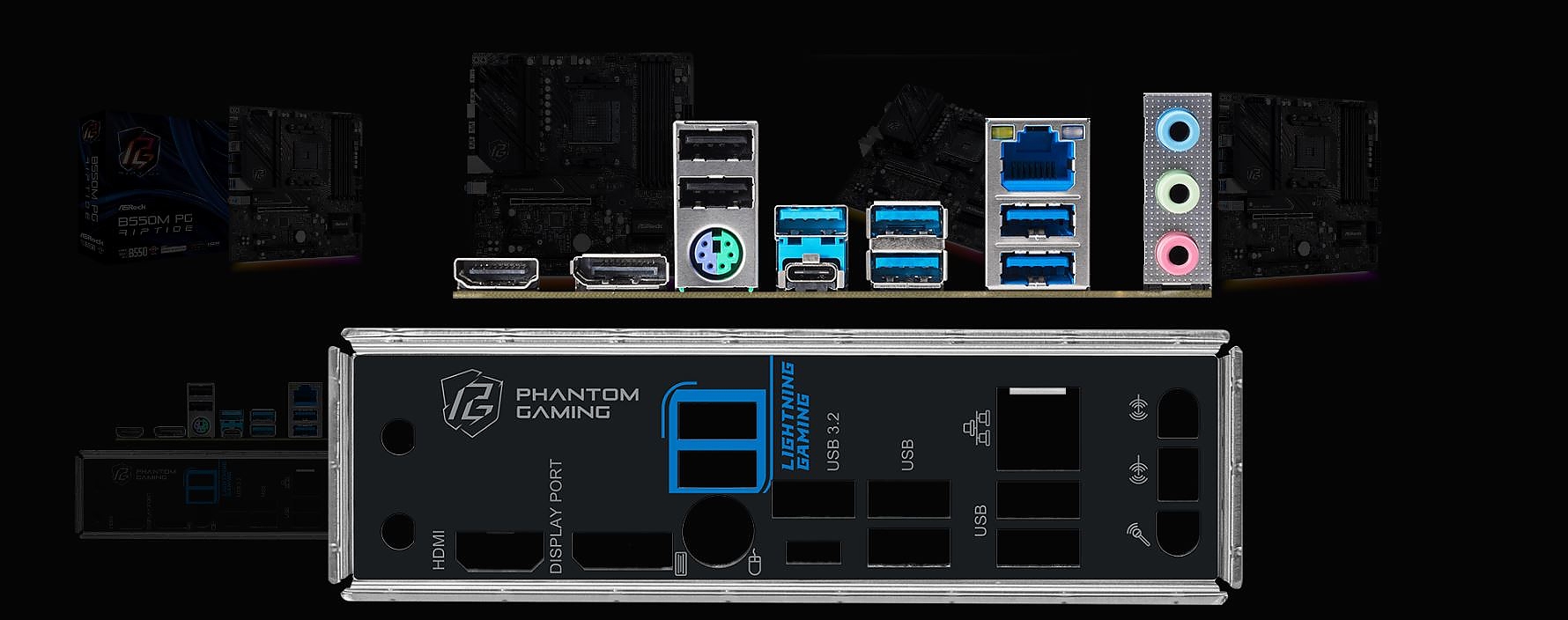

I/O: 2 x Antenna Mounting Points; 1 x PS/2 Mouse/Keyboard Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); 2 x USB 2.0 Ports (Supports ESD Protection)*; 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone;
Connectors: 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 2 x RGB LED Headers*; 2 x Addressable LED Headers**; 1 x CPU Fan Connector (4-pin)***; 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection); 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection);
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection; Nahimic Audio;
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Phantom Gaming LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE;
BIOS: 128Mb AMI UEFI Legal BIOS with GUI support; Supports "Plug and Play"; ACPI 5.1 compliance wake up events; Supports jumperfree; SMBIOS 2.3 support; CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, VPPM Voltage Multi-adjustment;
Form Factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; Solid Capacitor design;
OS: Microsoft Windows® 10 64-bit / 11 64-bit
Other: Software; ASRock Motherboard Utility (Phantom Gaming Tuning); ASRock Phantom Gaming LAN Software; ASRock Polychrome SYNC; ASRock Key Master*; UEFI; ASRock Full HD UEFI; ASRock Instant Flash; Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar; Quick Installation Guide, Support CD, I/O Shield; 2 x SATA Data Cables; 3 x Screws for M.2 Sockets; 1 x Standoff for M.2 Socket; Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans; Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans; Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans; Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V;
Warranty: 36 Months
